Bond용 Aligner System ( 셀 합착기 )
개요 : 본 장치는 Display 및 반도체 셀의 정렬 및 합착용으로 고안 된 장비입니다.

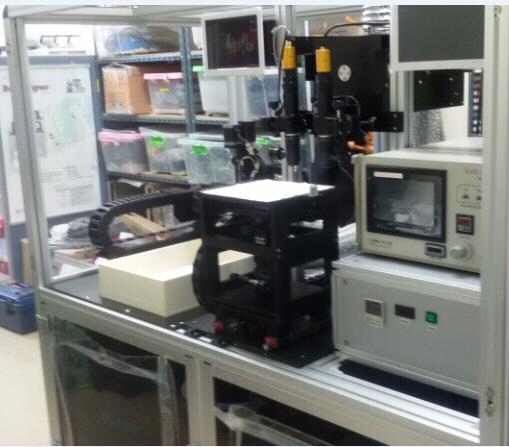

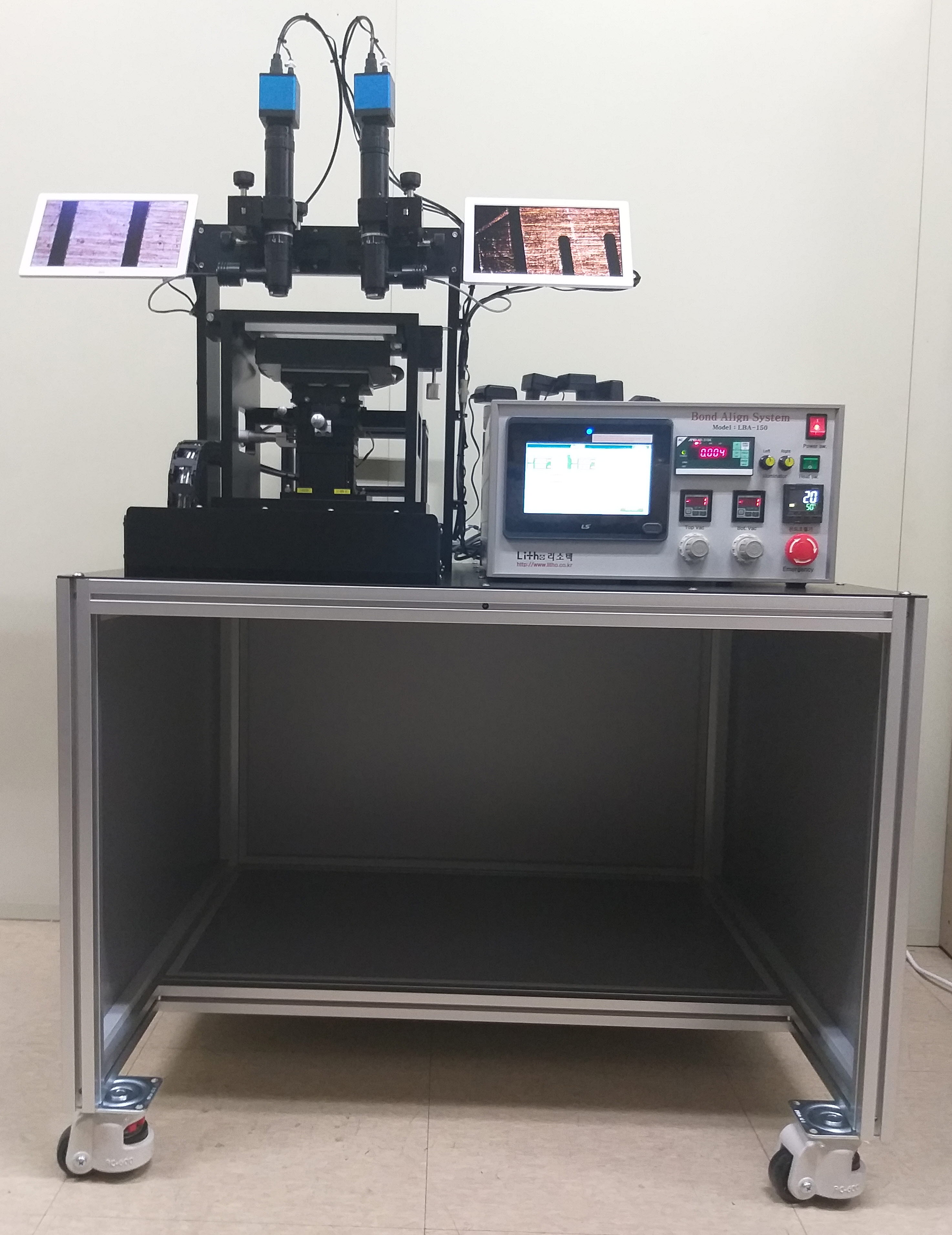

■ 370 x 470 Bond aligner system |
|
|
● 사 양 - Control : PLC and Touch Panel - Sample size : 370 x 470 ( Glass, Film ) - Process : Auto, manual mode - Sample loading : Manual - Sample Align Stage : X,Y,Z and θ axis motorize ( Manual ) Program and Joystick control - Microscope Module Motorize focus and Zoom lens - Spot UV 경화기 UV 250W형 : 조도 4500mw/㎠ 전자제어방식 셔터, 타이머 제어 Light Guide ( 4분기 ), Quartz(석영) type - Option : UV경화장치,Hot chuck 등 |
■ 370 x 470 Bond aligner system |
|
|
● 사 양 - Control : PLC and Touch Panel - Sample size : 370 x 470 ( Glass, Film ) - Process : Auto, manual mode - Sample loading : Manual - Sample Align Stage : X,Y,Z and θ axis motorize ( Manual ) Program and Joystick control - Microscope Module Motorize focus and Zoom lens - Spot UV 경화기 UV 250W형 : 조도 4500mw/㎠ 전자제어방식 셔터, 타이머 제어 Light Guide ( 4분기 ), Quartz(석영) type - Option : UV경화장치,Hot chuck 등 |

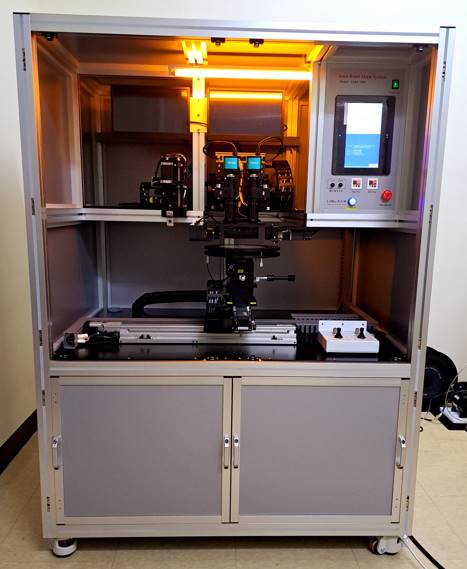

■ Auto Mode aligner system |
|
● 사 양 - Control : PLC and Touch Panel - Sample size : Order Made - Process : Auto, manual mode - Sample loading : Tray, JIG 사용 - Sample Align Stage : X,Y,Z and θ axis motorize Program(Z) and Joystick control - Microscope Module Motorize focus and Zoom lens - Spot UV 경화기 UV 250W형 : 조도 4500mw/㎠ 전자제어방식 셔터, 타이머 제어 Light Guide ( 4분기 ), Quartz(석영) type - Option : UV경화장치,Hot chuck 등 |

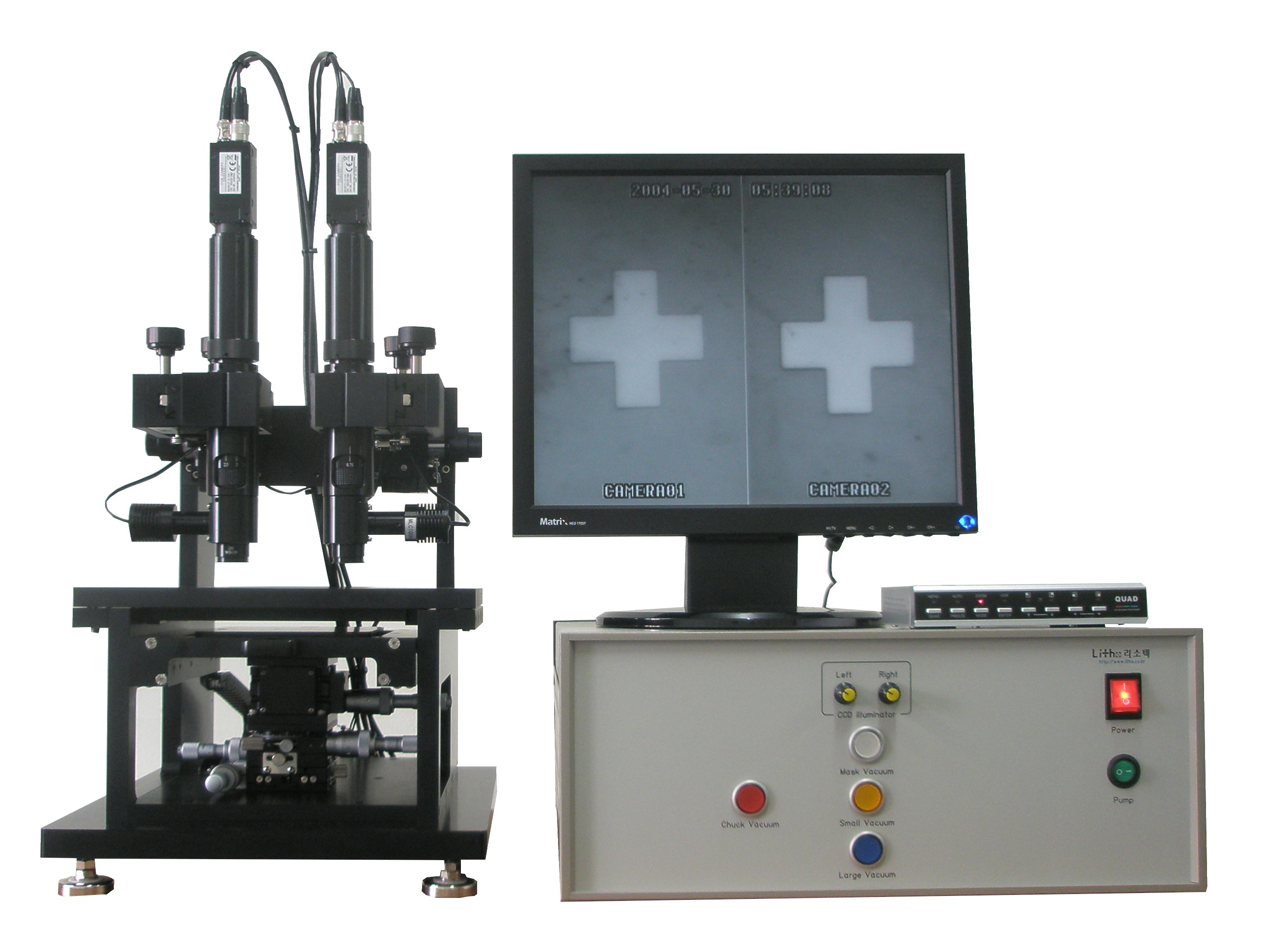

■ Manual Mode aligner system |
|
● 사 양 - Control : Manuall - Sample size : Order Made - Sample loading : Tray, JIG 사용 - Sample Align Stage : X,Y,Z and θ axis manual - Microscope Module Dual Zoom lens ( 12X ) - Exposure Spot UV, UV경화장치, Hot chuck 등 |

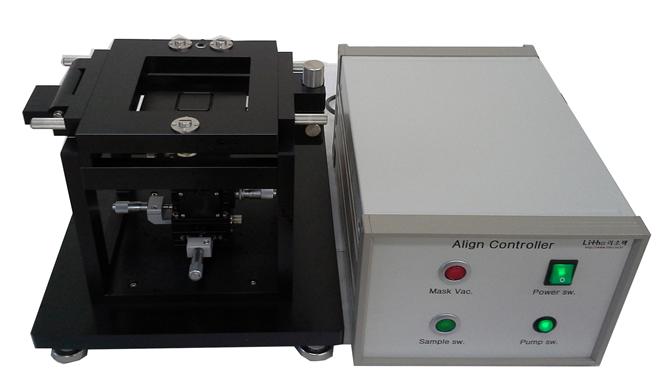

■ Bond Align용 Stage |
|
|
● 사 양 - Control : Manuall - Sample size : Order Made - Sample Align Stage : X,Y,Z and θ axis manual - Leveling stage - Clamp - Top Holder 분리형 |
- 가용한 재질
1. Glass + Glass
2. Film + Glass
3. Wafer + Glass
※ Si Wafer + Si Wafer ( IR Lamp 적용 )
- 제품의 특징
Mask 및 Top sample의 Loding의 편리성
정밀 stage 사용 : X, Y, θ, Z축 0.5㎛ ( Option : 50 nm )
Hard ware적인 leveling적용 : 일정한 gap을 유지한 상태로 cell을 경화시킬 수 있음
